Tier-1 EV Powertrain & Strong Performance
Powered by a CATL 41.86 kWh LiFePO4 battery paired with a high-efficiency electric motor delivering 75 kW (102 hp) peak output with up to 95% drive efficiency. It provides instant torque, responsive acceleration, and strong climbing capability to handle daily urban delivery routes with ease.
Ultra-Low Running Costs
Compared to conventional ICE refrigerated vehicles, electric operation slashes per-kilometer energy costs to a fraction of fuel expenses while minimizing routine maintenance, significantly boosting operational profit per route.
Optimized Cargo Space & High Efficiency
Internal box dimensions measure 3050 × 1630 × 1670 mm, offering an 8.3 m³ usable volume. Built with lightweight, high-density thermal insulation panels and 175/75R14LT heavy-duty radial tires, it maximizes payload volume while ensuring consistent temperature retention.
Compact Agility & Unrestricted Urban Access
With an overall length of 5.36 m, a width of 1.83 m, and a 3300 mm wheelbase, the vehicle boasts a tight turning radius for effortless navigation through narrow alleys, old residential areas, and basement loading docks with unrestricted green-plate city access.
Car-Like Cabin Comfort & Safety

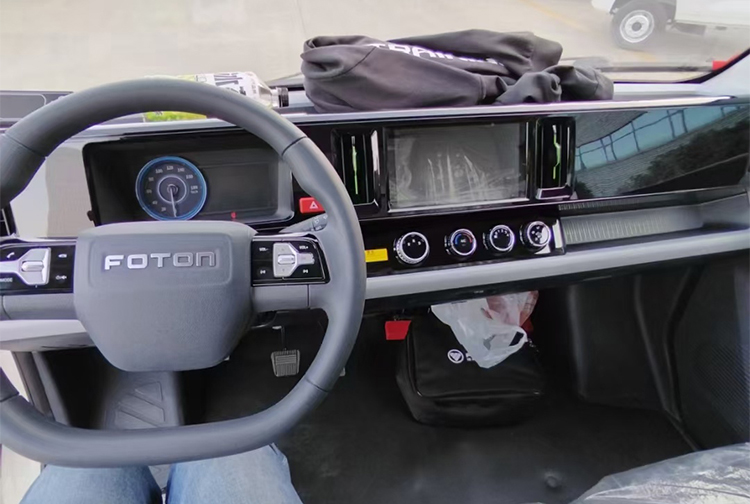

Equipped with a 1700 mm wide single-row cab, standard electric air conditioning, power windows, central locking, remote key fob, and ABS. The passenger-car-style ergonomic interior substantially reduces driver fatigue during long shifts.
| Foton Xiangling Q-EV pure electric small refrigerated truck | ||
| Classification | project | Technical Specifications / Configuration Instructions |
| Foundation and Dimensions | Model Name | Foton Xiangling Q-EV Pure Electric Mini Refrigerated Truck |
| Overall vehicle dimensions (mm) | 5365 × 1835 × 2675 | |
| Internal dimensions of the cargo compartment (mm) | 3050 × 1630 × 1670 (Volume approximately 8.3 m³) | |
| Wheelbase (mm) | 3300 | |
| Three-electric power system | Power battery brand/type | CATL (Contemporary Amperex Technology Co., Limited) lithium iron phosphate batteries |
| Battery capacity (kWh) | 41.86 | |
| Drive motor model | FTTBP070B Permanent Magnet Synchronous Motor | |
| Motor power / horsepower | Peak power 75 kW / approximately 102 hp | |
| Drive form | Rear-engine, rear-wheel drive (rear axle electrically driven) | |
| Chassis and load | Cab type | Xiangling Q series single-row wide-body cab (1700mm width, 2-person capacity) |
| Tire specifications | 175/75R14LT High-load light truck tubeless tire | |
| Braking and Steering | Hydraulic braking + front disc and rear drum brakes / ABS anti-lock braking system / Electronic power steering (EPS) | |
| Comfort and convenience features | Cab comfort | Original factory-installed electric air conditioning, power windows, central locking, and remote key. |
| Instrumentation and Intelligentization | LCD multi-function instrument panel, vehicle networking remote monitoring system | |
| Refrigerated compartments and application scenarios | Refrigerated compartment construction | Labyrinth-style sealing structure, high-density polyurethane insulation board, and non-slip aluminum base plate |
| Applicable Scenarios | Urban supermarket delivery, fresh food cold chain, community group buying, short-distance express delivery of catering ingredients and medicines | |
