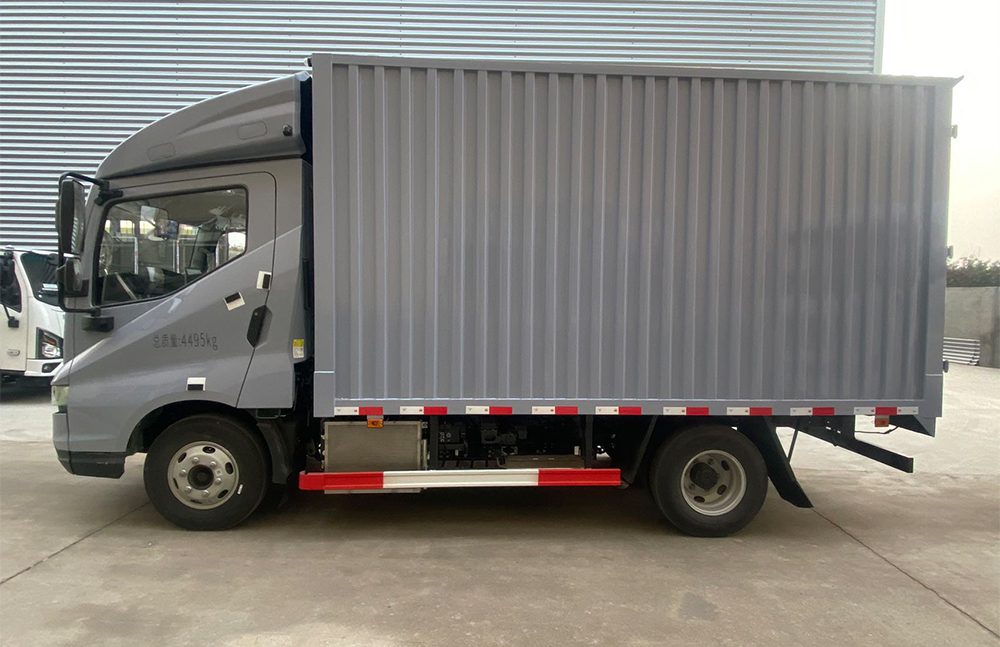

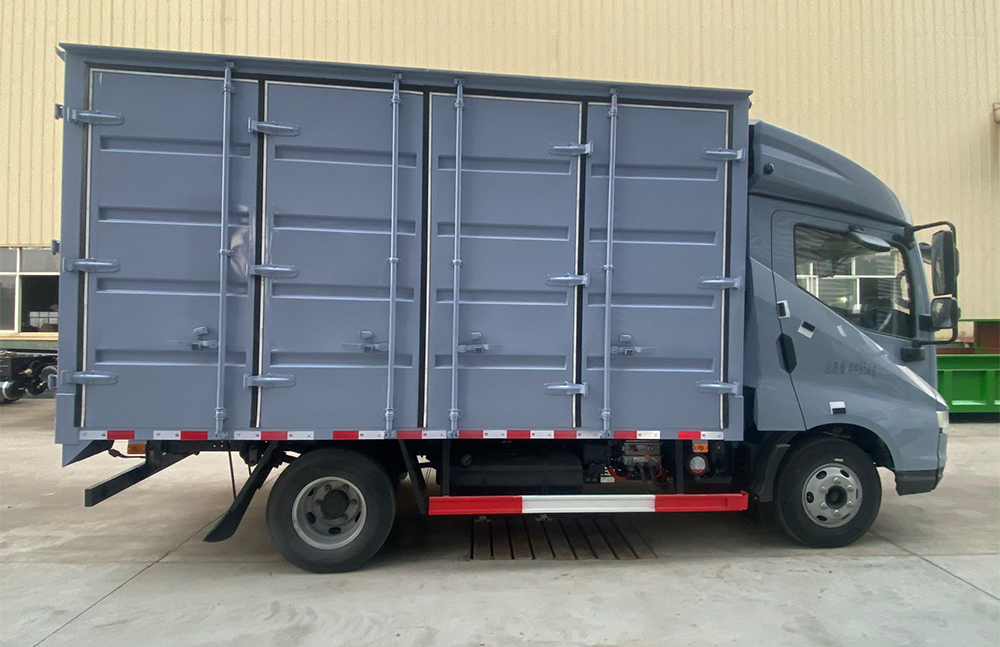

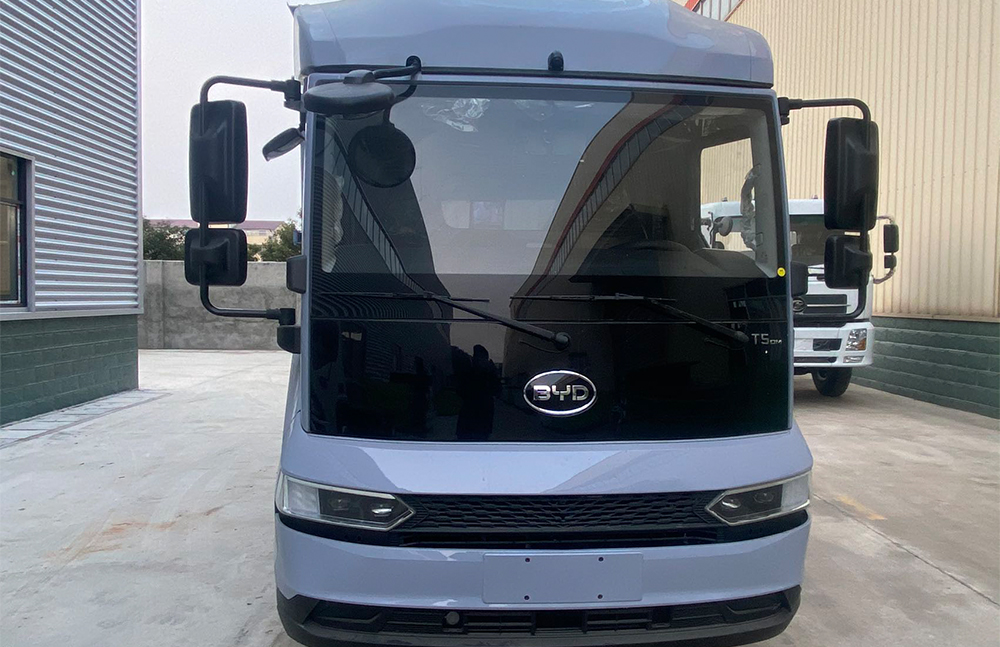

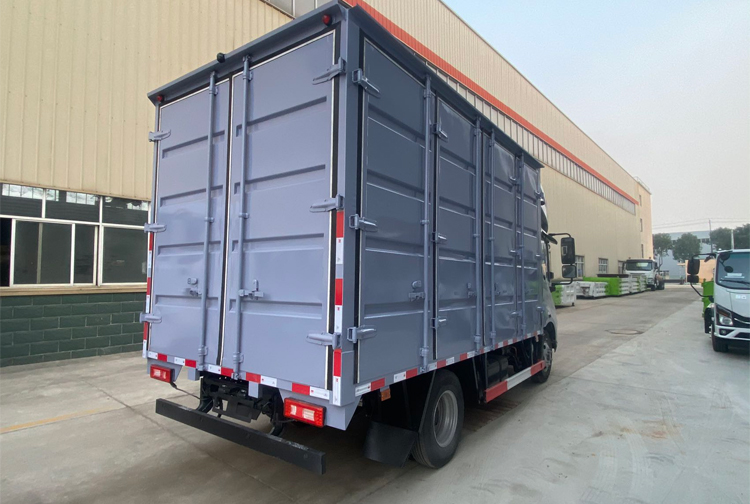

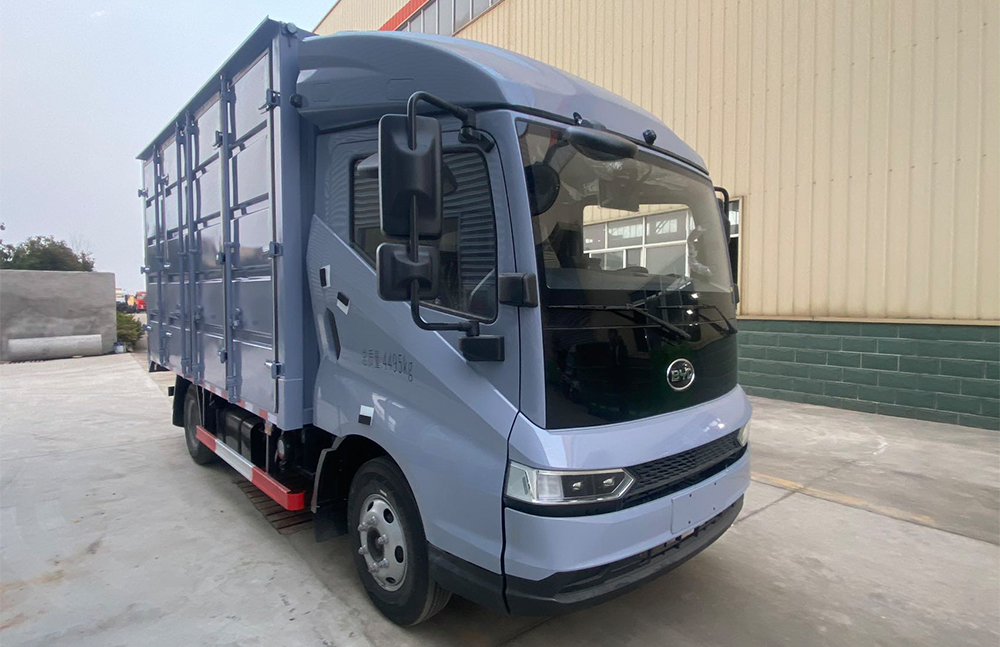

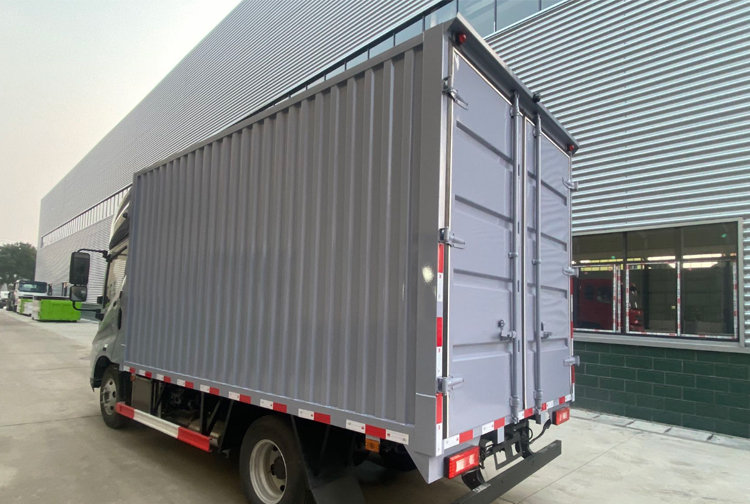

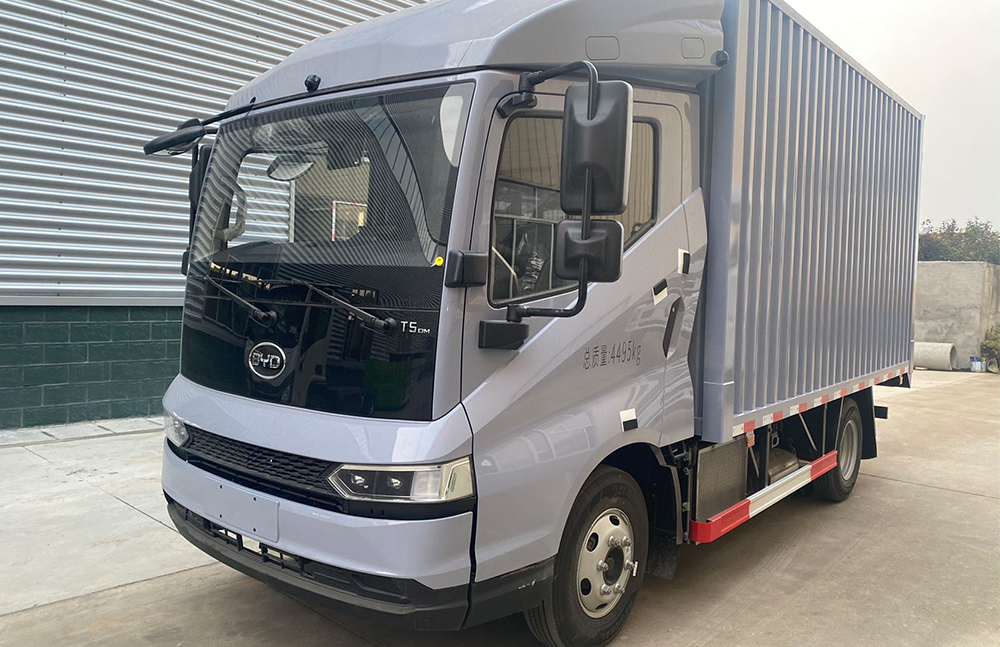

BYD T5DM Hybrid Box Truck (55.3 kWh)
The BYD T5DM is a plug-in range-extended hybrid light truck engineered for urban distribution and intercity regional logistics, combining green-energy operational savings with the refueling convenience of a fuel truck to eliminate range and charging anxiety.
1,000 km Combined Range: Powered by a Xiaoyun 1.5T range extender, a 100L fuel tank, and a 150 kW electric motor, delivering 150 km pure electric range for daily zero-emission routes and up to 1,000 km total range.
Ultra-Safe Blade Battery: Equipped with a 55.3 kWh Blade Battery that passes rigorous nail penetration safety tests, supporting 2C DC fast charging for rapid turnaround.
Heavy-Duty Chassis & Spacious Cargo Box: Internal box dimensions measure 4030 × 2100 × 2120 mm (~18 m³), supported by front 3 / rear 5+6 heavy-duty leaf springs and 7.00R16 radial tires for high load capacity.
Passenger-Car-Grade Smart Cabin: Features a 10.1-inch DiLink smart screen, full LCD cluster, push-button start, rotary gear selector, automatic climate control, EPB, Auto Hold, ESC, and an automatic Park (P) gear lock upon door opening.
Extended Factory Warranty: Backed by an 8-year / 500,000 km battery warranty and a 5-year / 250,000 km warranty on the electric motor and electronic controls.
| BYD T5DM Hybrid Van | ||
| Classification | project | Technical Specifications / Configuration Instructions |
| Basic Information | Model Name | BYD T5DM Plug-in Extended-Range Hybrid Van |
| Chassis Model | BYD1040A3HEV4C1 | |
| Passenger capacity | 3-person (single-row wide-body cab) | |
| Size and weight | Chassis dimensions (mm) | 5960 × 2050 × 2465 |
| Internal dimensions of the cargo compartment (mm) | 4030 × 2100 × 2120 (Customizable upon request) | |
| Wheelbase (mm) | 3360 | |
| Total mass (kg) | 4495 (Blue license plate compliant) | |
| Chassis curb weight (kg) | 2650 | |
| Powertrain | Power form | Gasoline range-extended hybrid electric vehicles (PHEV/EREV) |
| Range extender engine | Xiaoyun 1.5T Turbocharged High-Efficiency Range Extender Engine | |
| Fuel tank capacity (L) | 100 | |
| peak power of drive motor | 150 kW (approximately 204 horsepower) | |
| Battery and battery life | Power battery type | BYD's dedicated lithium iron phosphate blade battery. |
| Battery capacity (kWh) | 55.3 (nominal 56 kWh) | |
| Charging rate | 2C High-Efficiency DC Fast Charging | |
| Pure electric range (km) | 150 | |
| Total range under combined driving conditions (km) | 1000 | |
| Chassis and load | Suspension type (number of leaf springs) | Front 3 / Rear 5+6 (Heavy-duty, high-rigidity multi-leaf springs) |
| Tire specifications | 7.00R16 All-steel tubeless tire | |
| Steering system | Electronic power steering (EPS) system | |
| Intelligent cockpit and connectivity | Central control and multimedia | 10.1-inch rotating/multimedia floating screen, DiLink intelligent network system |
| Instrumentation and Control | Full LCD instrument cluster, multi-function steering wheel, rotary electronic gear shifter | |
| Convenience and comfort features | Keyless start, factory automatic climate control, power windows, central locking, remote key | |
| Safety and Active Control | Service Braking and Stability Control | Electronic Parking Brake (EPB), Automatic Parking (AVH), Automatic P-gear Shift Upon Door Opening |
| Electronic safety assistance | Electronic Stability Control (ESC), Traction Control System (TCS), Electronic Brakeforce Distribution (EBD) | |
| Driving assistance | Hill Start Assist (HHC), Cruise Control (CCS) | |
| Vision and Assisted Safety | Reversing camera, reversing radar, LED front combination headlights (with automatic sensor activation). | |
| Official warranty policy | Power battery warranty | 8 years or 500,000 kilometers |
| Motor/Electrical Control System Warranty | 5 years or 250,000 kilometers | |
| Whole vehicle chassis warranty | 3 years or 100,000 kilometers | |
