Changan Gold Label T3 Refrigerated Truck

$11,246

Changan Gold Label T3 Refrigerated Truck

The Changan Gold Label T3 Refrigerated Truck features a 1.6L gasoline engine delivering 122 hp, a spacious insulated cargo box, and a compact, maneuverable design, making it ideal for fresh produce, meat, dairy, and other temperature-sensitive goods delivery.

Overall vehicle dimensions

5145 × 1700 × 2610 mm

Dimensions inside the car

2960 × 1560 × 1600 mm

Gearbox

5MT manual transmission

Wheelbase (mm)

3080

Curb Weight (kg)

1575

Engine

Gasoline

Changan Gold Label T3

Whatsapp >>

Send E-mail >>

Product Details

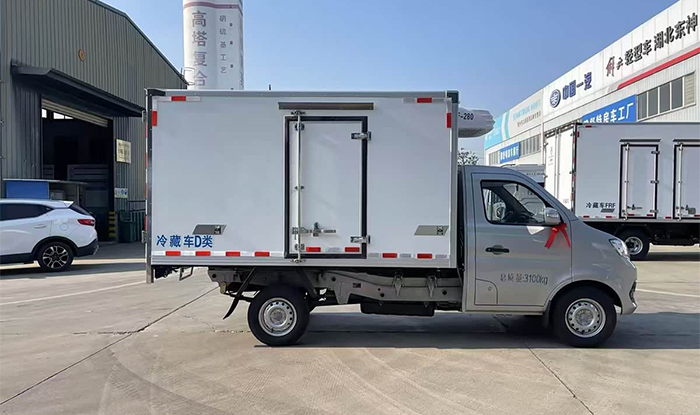

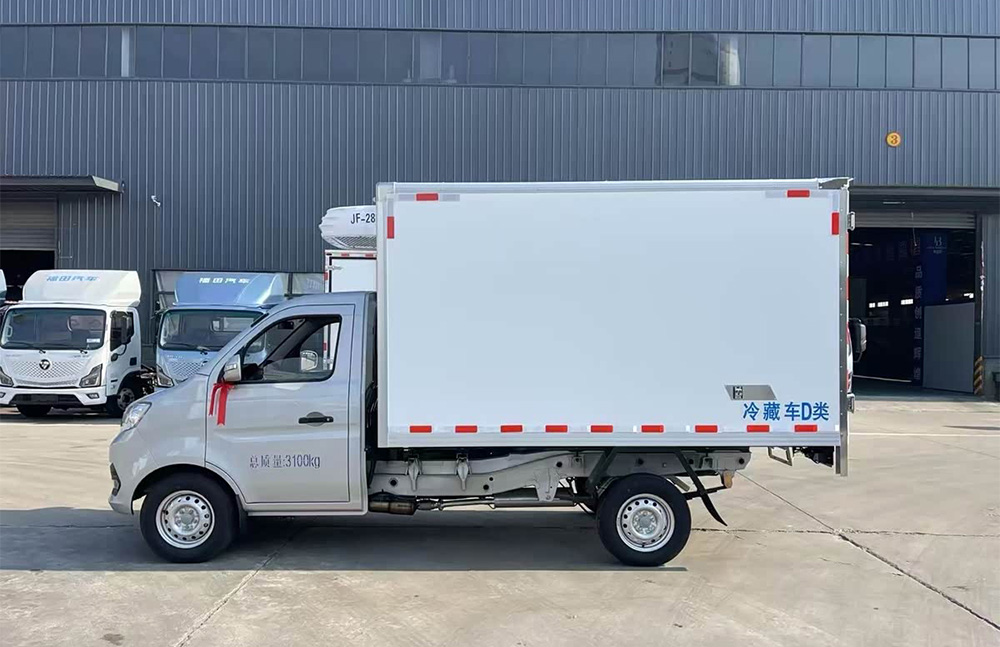

Exterior and Cargo Box Design
The Changan Gold Label T3 Refrigerated Truck measures 5145 × 1700 × 2610 mm overall, featuring a 2960 × 1550 × 1600 mm refrigerated cargo box. Its well-optimized layout makes it ideal for navigating urban roads and handling daily goods delivery.

Powertrain and Chassis Configuration
Powered by a Yu'an SFG16PC 1.6L gasoline engine, the vehicle delivers a maximum output of 90 kW (122 hp). It is equipped with a 5-speed transmission and a 3080 mm wheelbase, making it well-suited for short- to medium-distance transport within cities and their surrounding suburbs.

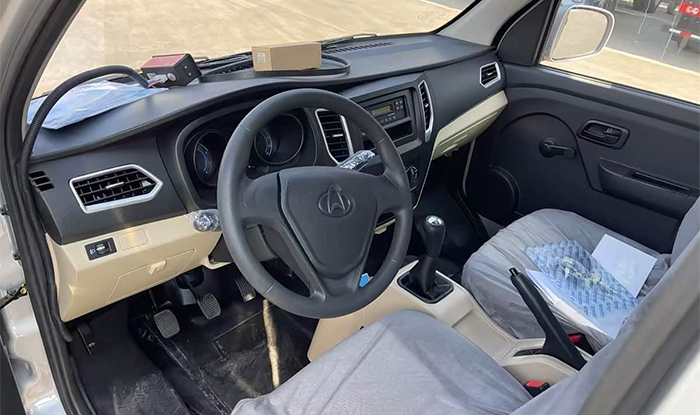

Comfortable Driving Experience
The vehicle comes standard with factory-installed air conditioning, power steering, and fabric-upholstered seats. It rides on 175R14 tires and features a single-rear-wheel configuration, balancing driving comfort with ease of handling for daily operations.

Versatile Cold Chain Transport
Designed for a wide range of applications—including the transport of fresh produce, meat, dairy products, food service ingredients, and supermarket supplies—this vehicle meets diverse cold chain logistics needs. (Actual cooling capacity depends on the specific refrigeration unit installed.)

Inquire about the Changan Gold Label T3 Refrigerated Truck today to receive a tailored cold chain transport solution!

Product Specifications

Changan Gold Label T3 Refrigerated Truck
Classification	project	Specific configuration and parameters
Basic Information	Vehicle Announcement Model	SC5031XLCTMD6B1
	Overall vehicle dimensions	5145 × 1700 × 2610 mm
	Internal dimensions of the compartment	2960 × 1560 × 1600 mm
	Wheelbase	3080 mm
	Chassis curb weight	1575 kg
Chassis configuration	Engine Model	1.6L Yu'an gasoline engine, 122 horsepower (SFG16PC, 1597ml displacement, 90kW), National VI b emission standard
	Gearbox	5MT manual transmission
	Rear axle	Single rear wheel, 175R14LT 8PR vacuum tire
	Braking system	Dual circuit vacuum-assisted hydraulic brake with ABS system
	Cab and interior	Knitted fabric seats, factory original air conditioning, electronic power steering, manually liftable windows, narrow 1700mm body, small turning radius, flexible maneuverability
	Chassis frame & suspension	148mm main beam + 100mm auxiliary beam, 5-leaf steel spring, non-independent suspension, strong load-bearing & anti-torsion performance
Refrigeration system	Refrigeration unit	Professional refrigeration unit, stable temperature down to -18℃
Refrigeration system	Box body parameters	Volume: 7.4 m³; Vacuum adhesion integrated molding; 8cm XPS extruded insulation layer; inner & outer fiberglass panels; Class A thermal insulation performance
Application scenarios	Main applications	Fresh fruits & vegetables, frozen meat, ice cream, pharmaceutical vaccines, seafood preservation, cold chain transportation
